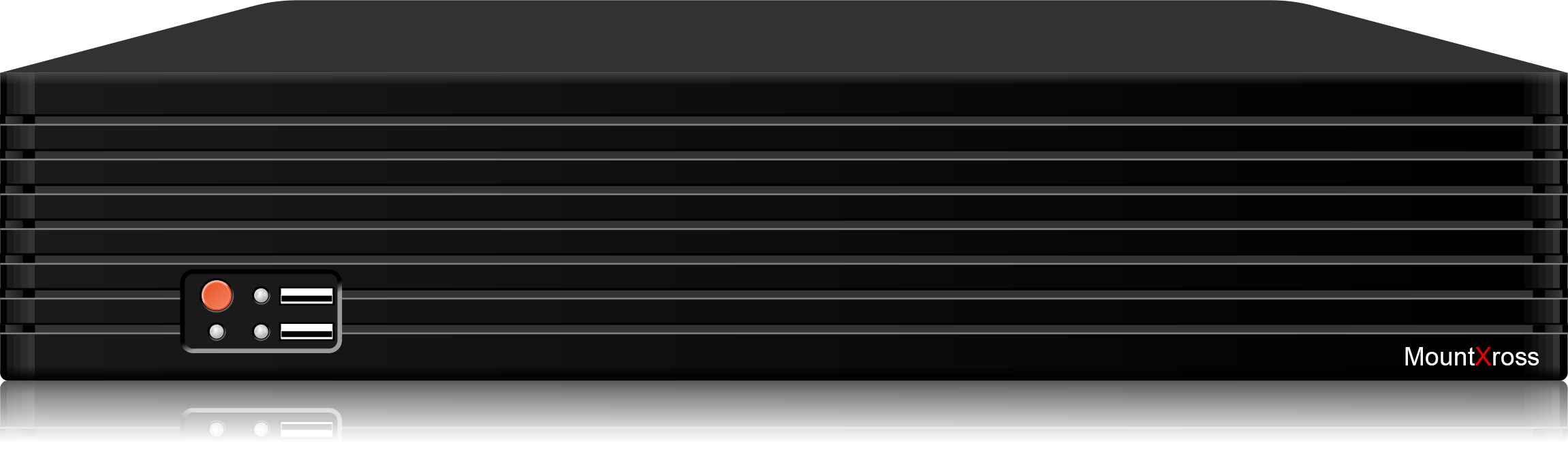

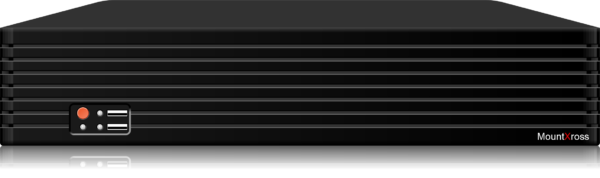

64 Channel NVR – MX9364PN
- 64 Channel Network Video Recorder
- 300 Mb incoming bandwidth
- Enabled Digital Zoom
- Easily Accessable
- Compact Size
- Latest Technology
Technical Specifications
System |
|||
| Main Processor | ARM Cortex A17 Quad-core Processor | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 64 Channel, Support 4096×2160, 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc, Incoming Bandwidth: 300MB | ||
| Output | 1 VGA, 2 HDMI | ||
| Audio | |||
| Input | 1 Port RCA | ||
| Output | 1 Port RCA(Linear, 1kΩ) | ||
| Audio Bit Rate | 64kbps | ||
| Audio Compression standard | G.711 | ||
Alarm |
|||
| Sensor Input | 16 | ||
| Output | 4 | ||
| Motion Detection | 64 Channel, MD Zones: 396 (22 × 18) | ||
| Trigger Events | Recording, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output | ||
Display |
|||
| HDMI1 | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| HDMI2 | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| VGA | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| Display Split | 64CHxD1/36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k | ||
| Digital Zoom | YES | ||
| OSD | Camera Title, Time, Video Loss, Recording, Motion Detection | ||
Recording |
|||
| Video Compression | H.264/H.265 | ||
| Resolution | 4k(4096×2160),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (704×576/704×480) | ||
| Record Rate | PAL :4k@30×25fp,5MP@45×25fp,4MP@64x25fp,3MP@60×25fp,1080P@64×25fp, 960P@64×25fp,720P@64×25fp, D1@64×25fp | ||
| NTSC: 4k@30×30fp,5MP@45×30fp,4MP@64×30fp,3MP@60×30fp,1080P@64×30fp, 960P@64×30fp, 720P@64×30fp, D1@64×30fp | |||
| Record Mode | Manual\Timer\Motion Detection | ||
| Playback & Backup | |||
| Local Sync Playback | 4 channelx4k | ||
| Remote Sync Playback | YES | ||
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom | ||
| Backup Mode | USB Device/Network | ||
Network |
|||
| Interface | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces | ||
| Network Functions | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, IP Search, P2P | ||
| Onvif Version | Support Onvif 2.4 | ||
| Web Browser | IE6-11, Google Chrome (IE Tab), Firefox (IE Tab) | ||
| CMS Software | Support Windows 7/ Windows 8/Windows 10 | ||
| Cloud Support(P2P) | Yes | ||
| Smart Phone | iPhone, iPad, Android, Android Pad | ||
| Storage | |||
| Interface Type | 8 SATA Interface | ||
| Capacity | Up to 48TB capacity | ||
| eSATA | 1 eSATA interface | ||
General |
|||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa | ||
| German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian | |||
| USB Interface | 2 USB 2.0 Interfaces ,1 USB 3.0 Interface | ||
| RS485 | 1 Port, for PTZ Control | ||
| Power Supply | 100 to 240 VAC, 50 to 60 Hz | ||
| Working Environment | -10~55℃/10~90% | ||
| Dimension(W×D×H) | 2U, 440mm×450mm×95mm | ||
| Weight | 9.8Kg（without HDD） | ||
