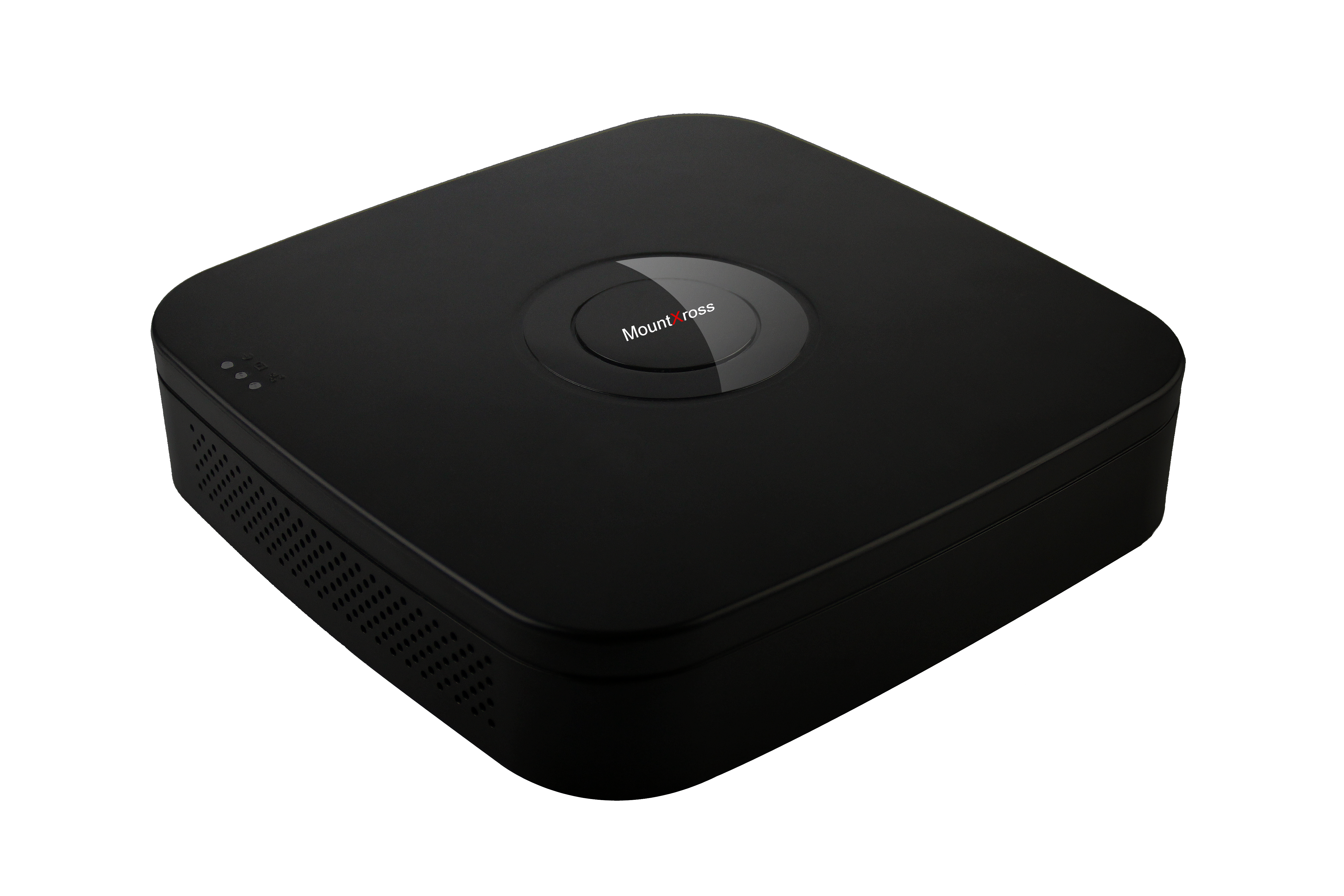

9 Channel NVR – MX9309PN
- 9 Channel Network Video Recorder
- 80 Mb incoming bandwidth
- Easily Accessable
- Compact Size
- Latest Technology
Technical Specifications
System |
|||
| Main Processor | ARM Cortex A7 Quad-core Processor | ||
| Operating System | Embedded LINUX | ||
Video |
|||
| Input | 9CH (4096×2160, 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc),Incoming Bandwidth: 80MB | ||
| Output | 1 VGA, 1 HDMI | ||
Audio |
|||
| Input | 1 Port RCA | ||
| Output | 1 Port RCA | ||
Alarm |
|||
| Sensor Input | NO | ||
| Output | NO | ||
| Motion Detection | 9 channel | ||
| Email Alarm | Support | ||
Display |
|||
| VGA | Resolution: 1920×1080/1280×1024/1280×720 | ||
| HDMI | Resolution:4K 3840×2160/1920×1080/1280×1024/1280×720 | ||
| Display Split | 9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k | ||
| Digital Zoom | YES | ||
| OSD | Camera Title, Time, Video Loss, Recording, Motion Detection | ||
Recording |
|||
| Video Compression | H.265/H.264 | ||
| Resolution | 4k(4096×2160),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (704×576/704×480) | ||
| Record Rate | PAL :4k@8×25fp,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp | ||
| NTSC: 4k@8×30fp,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp | |||
| Record Mode | Manual\Timer\Motion Detection | ||
Playback & Backup |
|||
| Local Sync Playback | 1CH@4K/4CH@1080P | ||
| Remote Sync Playback | YES | ||
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom | ||
| Backup Mode | USB Device/Network | ||
Network |
|||
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface | ||
| Network Functions | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P | ||
| Onvif Version | Support Onvif 2.4 | ||
| Web Browser | IE6-11, Google Chrome (IE Tab), Firefox (IE Tab) | ||
| CMS Software | Support Windows 7/ Windows 8/Windows 10 | ||
| Cloud Support(P2P) | Yes | ||
| Smart Phone | iPhone, iPad, Android, Android Pad | ||
| Hard Disk Driver | |||
| Interface Type | 1 SATA Interface | ||
| Capacity | Up to 6TB capacity | ||
General |
|||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa | ||
| German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek | |||
| USB Interface | 2 USB 2.0 Interfaces | ||
| Power Supply | DC12V/2A | ||
| Working Environment | -10~55℃/10~90% | ||
| Dimension(W×D×H) | 215*215*53mm | ||
| Weight | 2.0KG (without HDD) | ||
